RM 8 T KNX

Name: RM 8T
SKU: 37
Rating: 5 (46 reviews)

( 46 đánh giá )

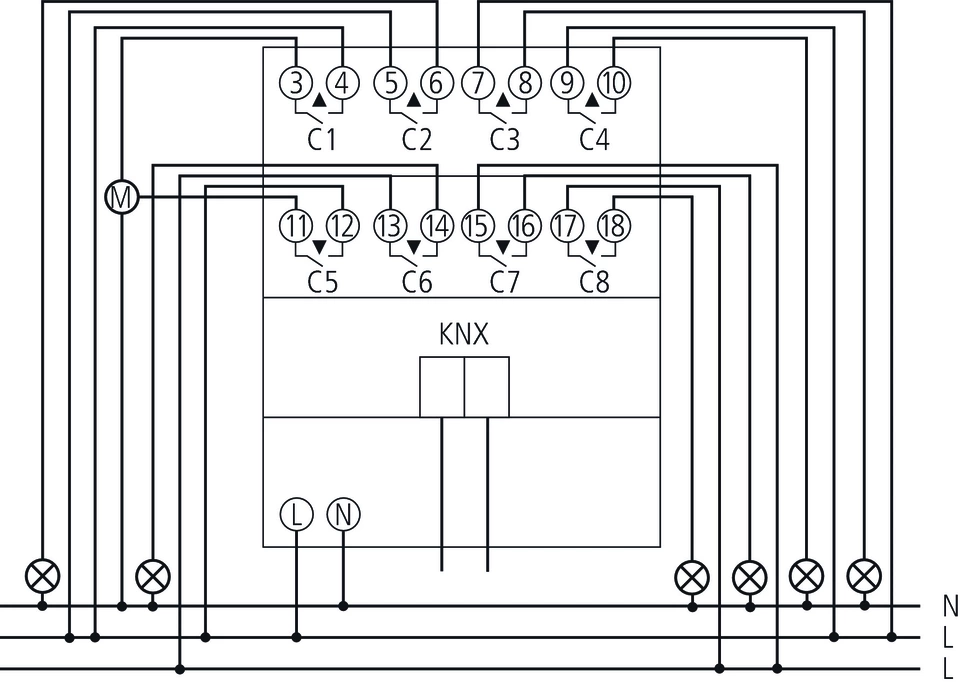

8-way switching or 4-way blind actuator FIX1
Flexible channel function selection as switching actuator or for controlling drives for blinds,shutters, sun and vision protection devices, skylights and ventilation flaps
LED switching status display for each channel

13,696,800đ

Technical data

Operating voltage KNX	Bus voltage, ≤4 mA
Operating voltage	110 V AC - 240 V AC, 50 Hz - 60 Hz
Frequency	50 - 60 Hz
Stand-by consumption	~0.5 W
Installation type	DIN rail

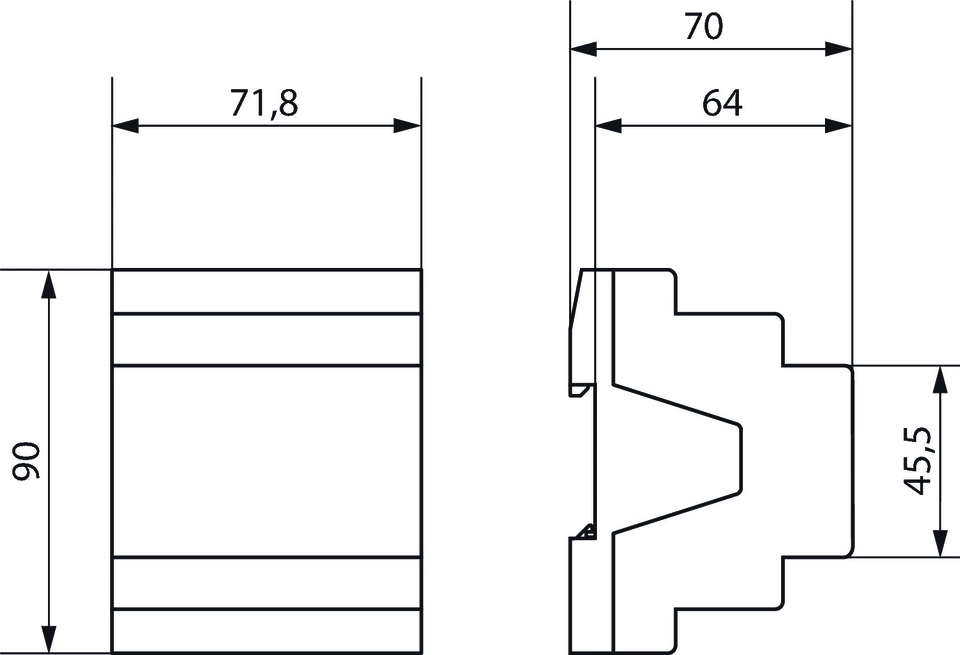

Width	4 modules
Type of connection	Terminal screws \| Bus connection: KNX bus terminal
Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² \| Stranded wire with end sleeve: 0.5 mm² to 4 mm²
Type of contact	NO contact, 16 A, 3 A
Opening width	< 3 mm
Incandescent/halogen lamp load	2000 W
Fluorescent lamp load (conventional) parallel-corrected	1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected	2000 VA
Fluorescent lamp load (electronic ballast)	1200 W
Energy saving lamps	300 W
LED lamp < 2 W	55 W
LED lamp 2-8 W	600 W
LED lamp > 8 W	600 W
Inrush current	max. 800 A / 200 µs
Voltage output	240 V AC
Switching output	Potential-free
Switching of various phases	Possible
Suitable for SELV	Yes if all channels switch at SELV
C load
Type	Module FIX1
Ambient temperature	-5°C ... 45°C
Type of protection	IP 20
Protection class	II according to EN 60 669

Hand book	ZIP	RMG 8 T KNX (2,3 MB)
Operating instructions	PDF	RM 8 T (1,3 MB)
KNX-Database (Single Product)	ZIP	RM 16 T KNX (1,1 MB)
CAD symbol	ZIP	4940200 (2,1 MB)
KNX overall database KNXprod	ZIP	KNXprod (21,1 MB)
Data sheet	PDF	RM 8 T KNX (531,3 kB)
Catalogue	PDF	General catalogue 2024 (25,6 MB)
